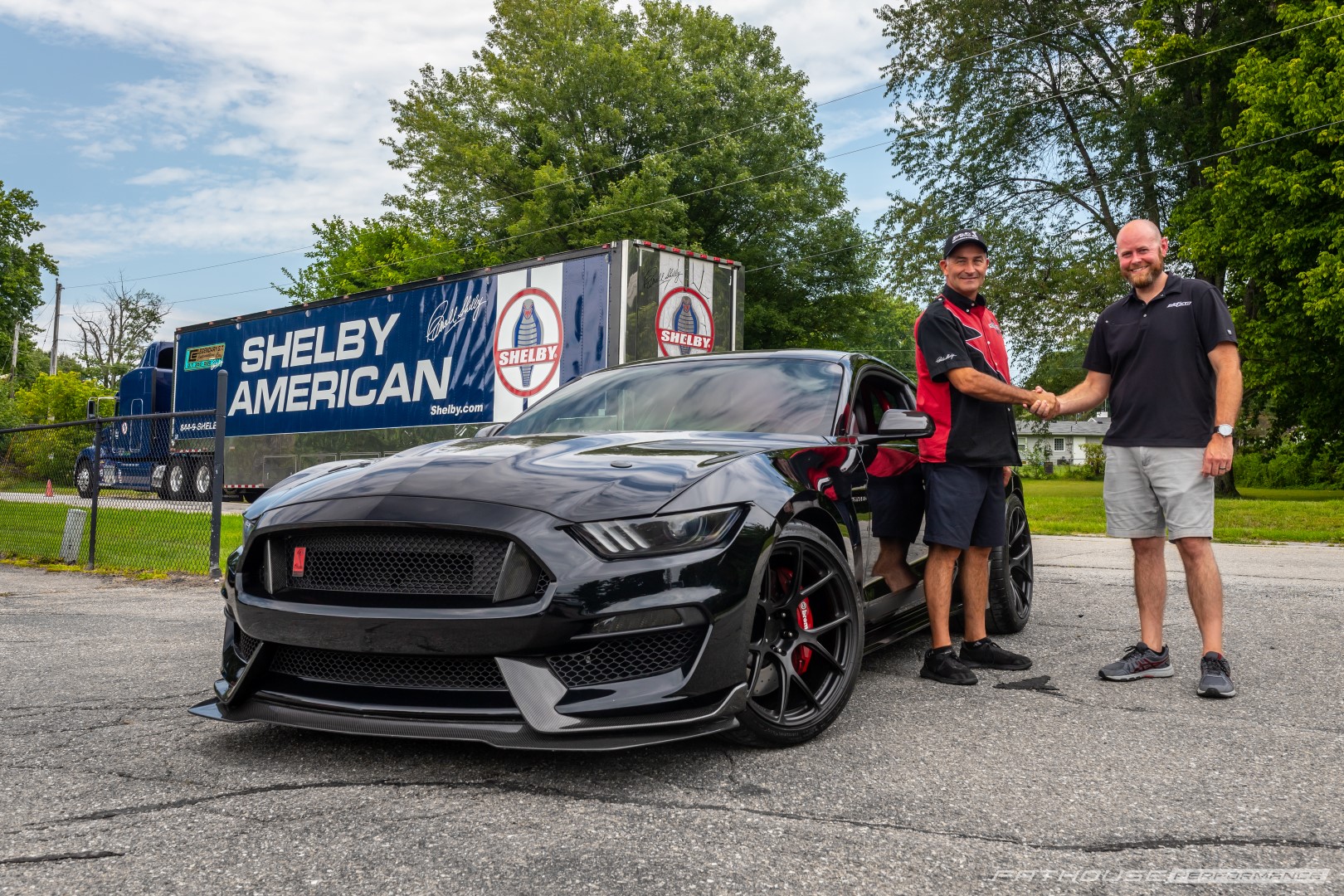

Shelby Prototype P001 Widebody 2016 Shelby GT350 #39

Completed Build

Used as Shelby American development and promotion car for Widebody SE package

Shelby pre production prototype meets Fathouse Performance Twin Turbo 1200R

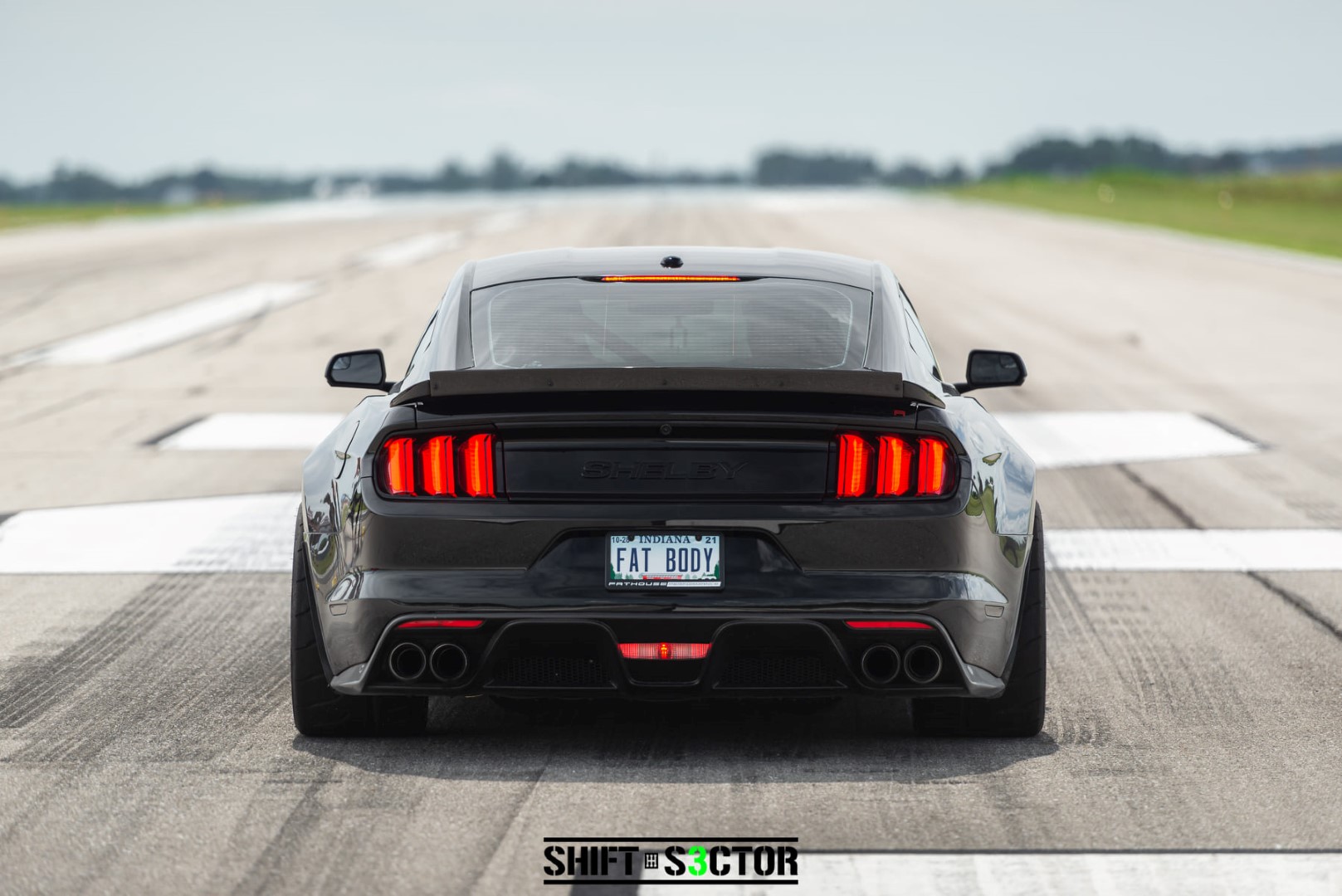

241122153_4425854534128686_3224282359084656016_n (2)
IMG_4019 (Large)

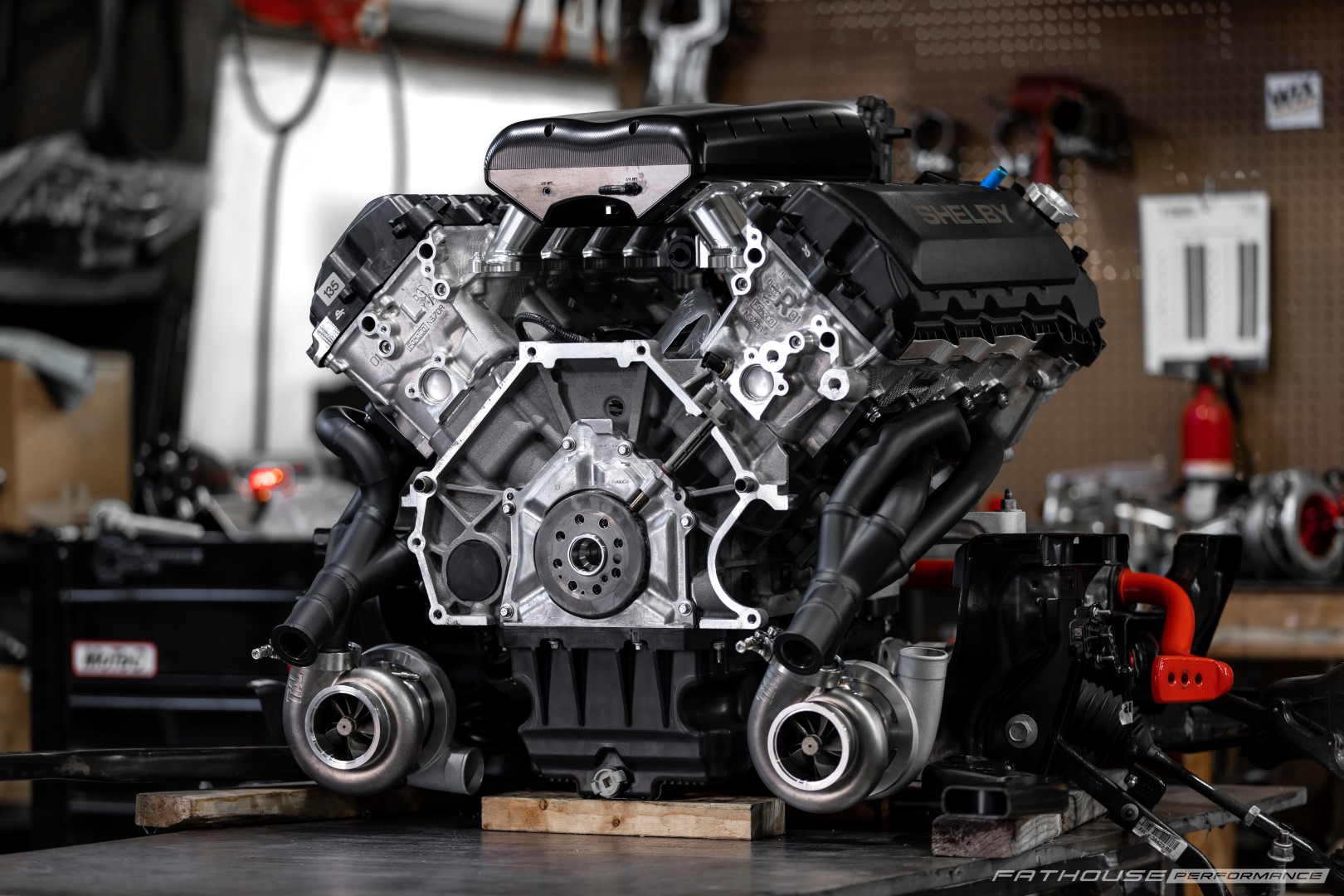

IMG_6997 (Large)

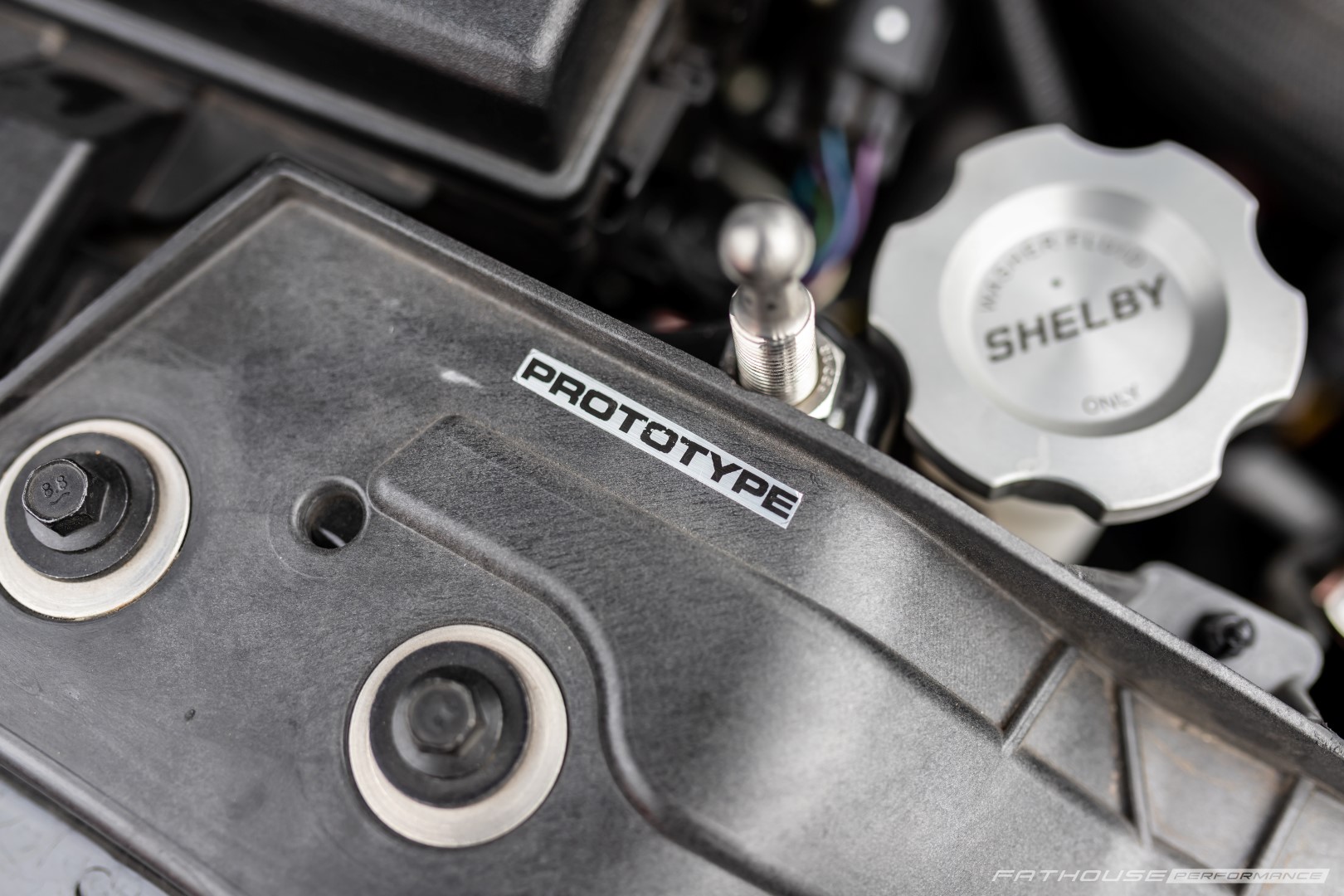

IMG_4005 (2)

1200R Twin Turbo

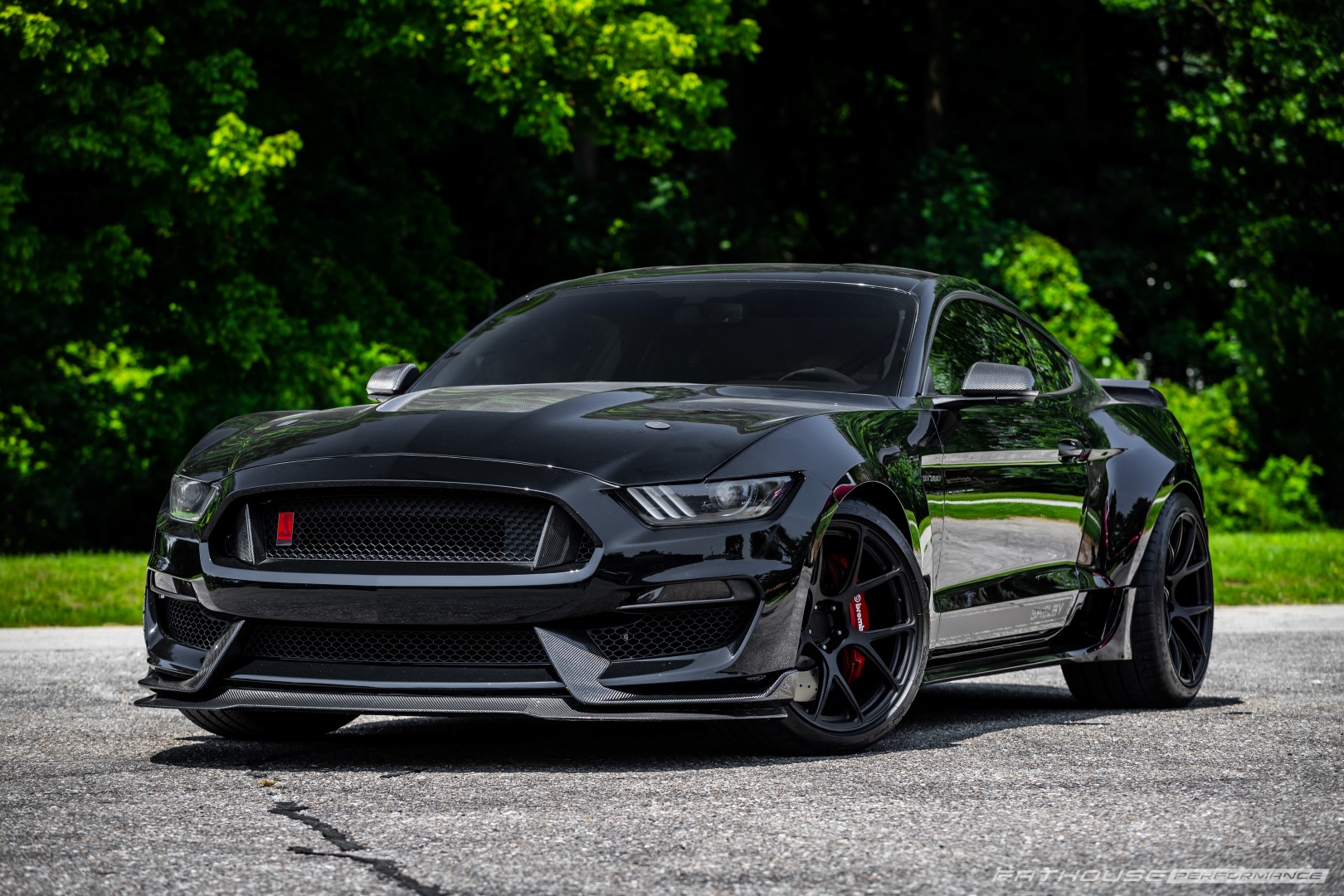

FatBody 2016 Shelby GT350 Prototype Widebody P001 - Fathouse Serial #39

  • 850 WHP on 93 Oct
  • 4.8 secs 60-130
  • 1147 WHP on E85

DynoJet Research

Figures Don’t Lie

Max Power at Engine RPM =

Max Torque at Engine RPM =



CF: STD SMOOTHING: 5

Engine RPM (RPM×1000)

Description + Specs

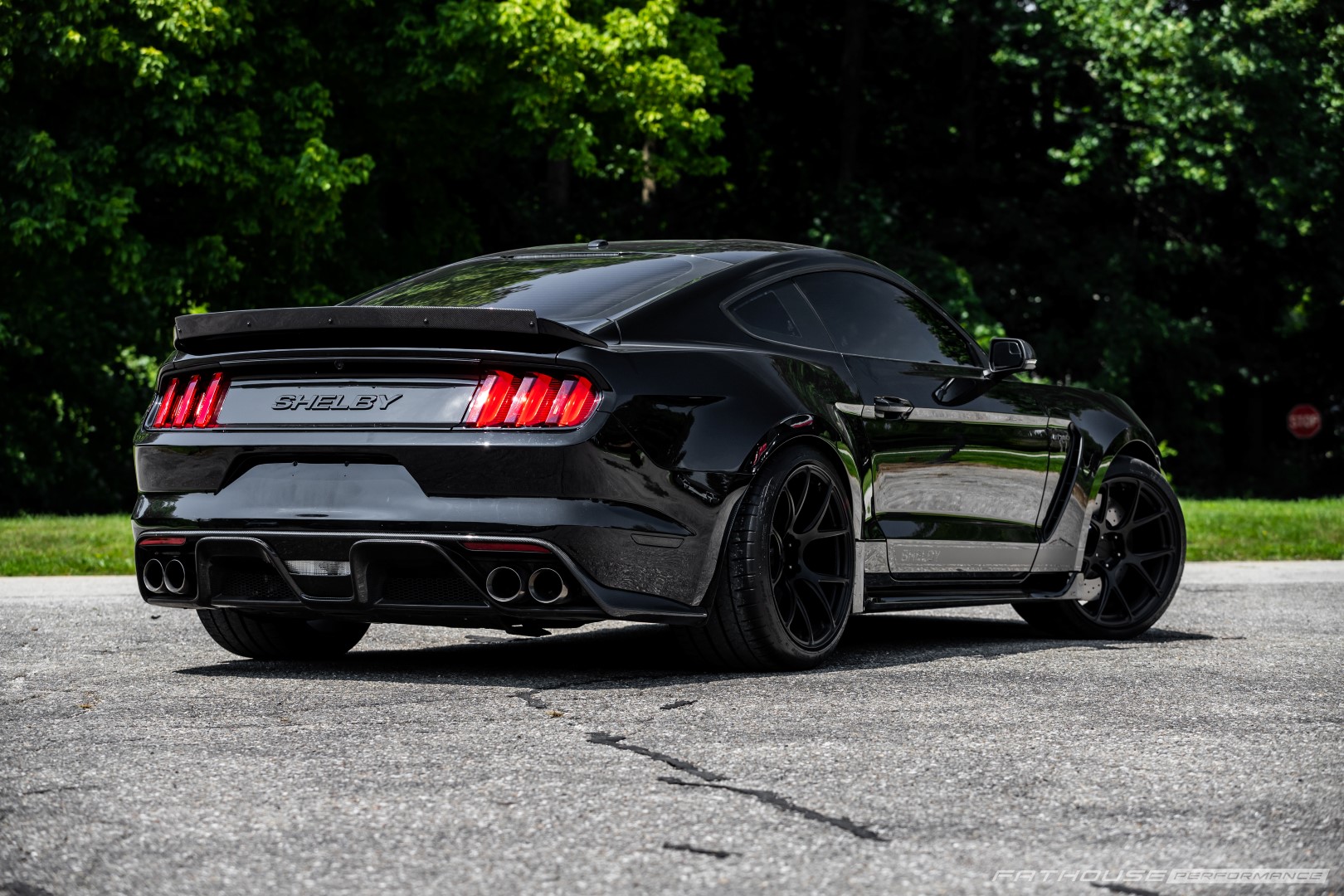

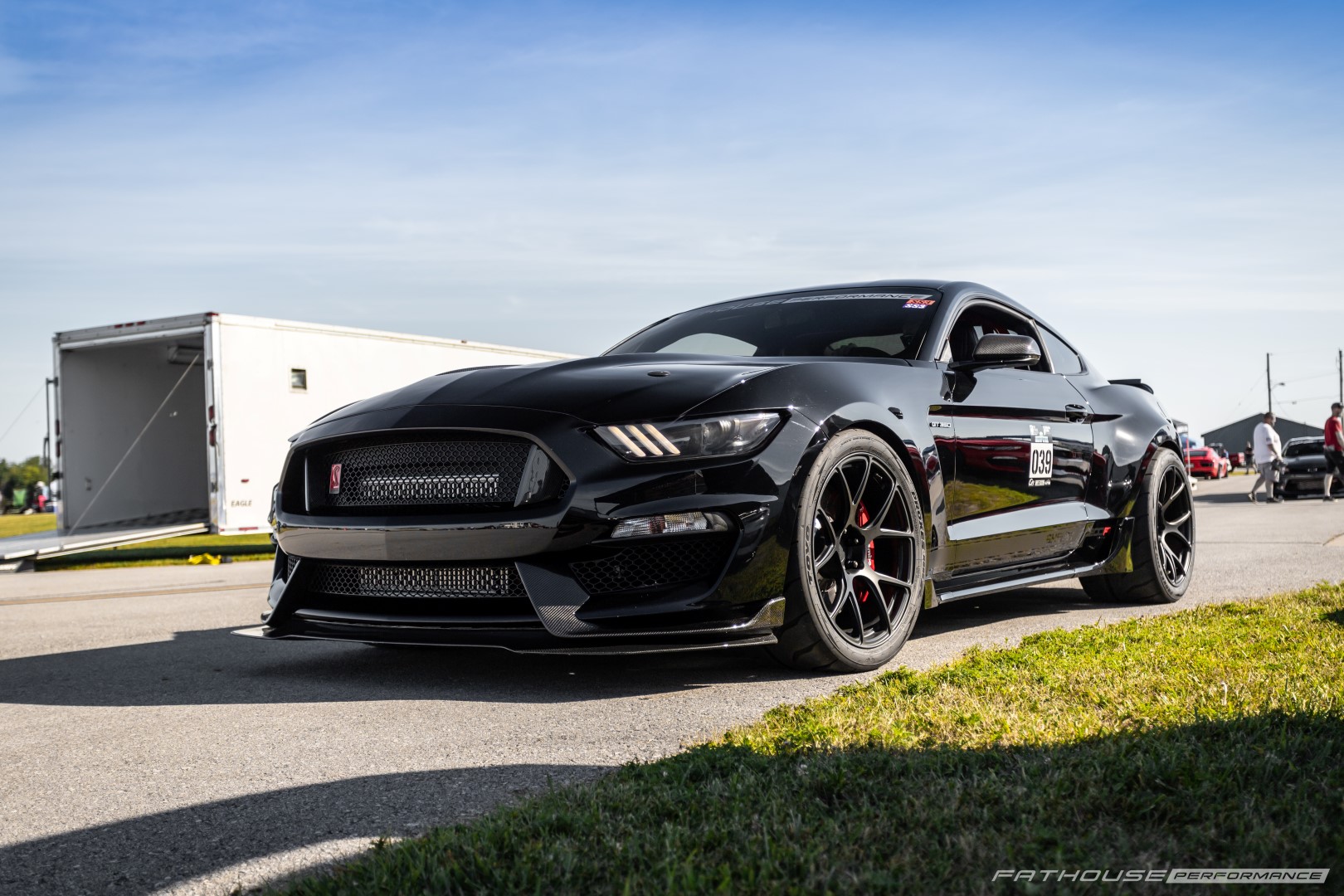

  1. (01) Shelby Widebody Package
    •  Steel rear quarter panels

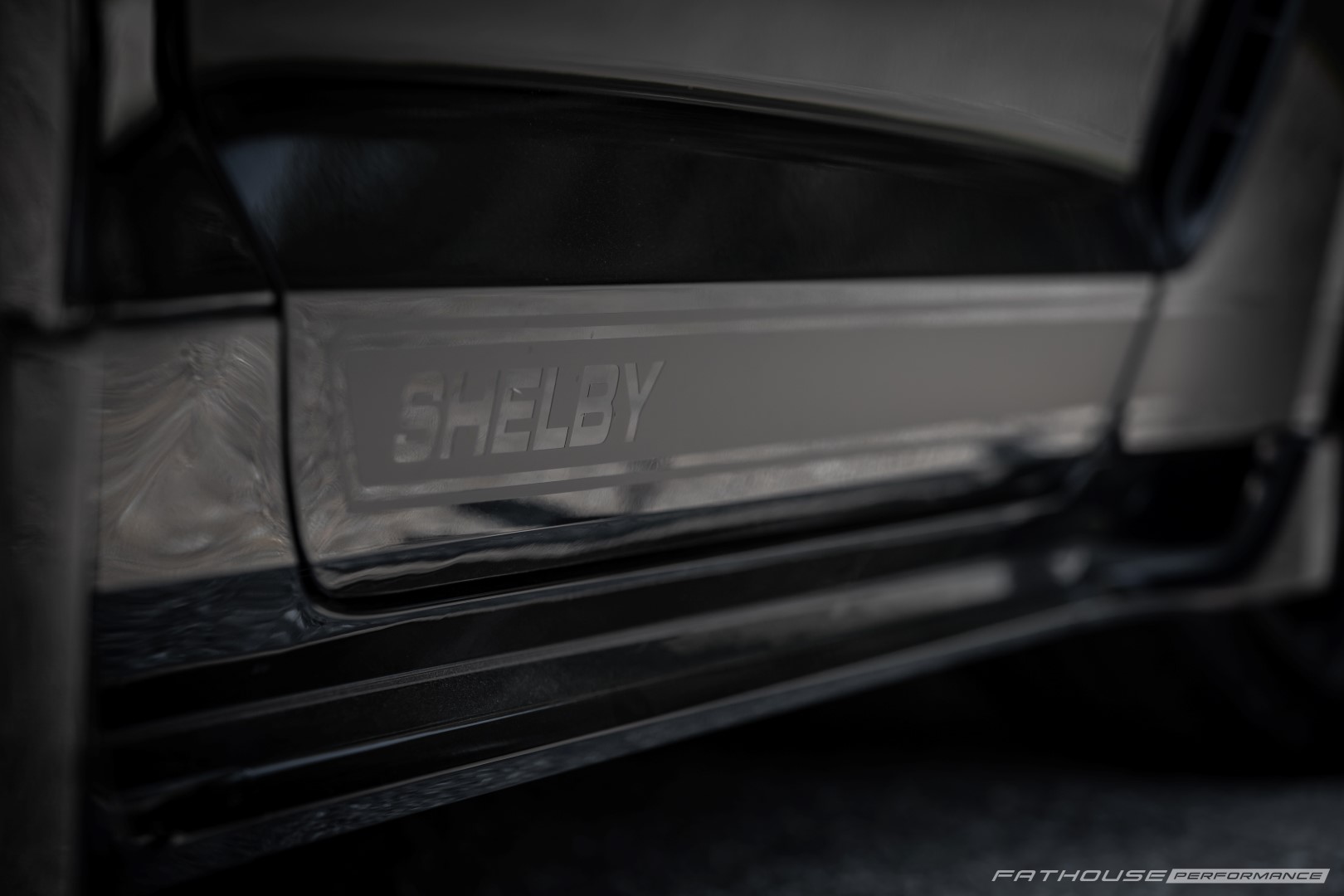

    •  Side rocker panels and wings
    •  20” x 11” forged mono-block front wheels
    •  20” x 13” forged mono-block rear wheels
    •  305/30R20 front spec performance tires
    •  335/30R20 rear spec performance tires
    • Front and Rear performance sway bars

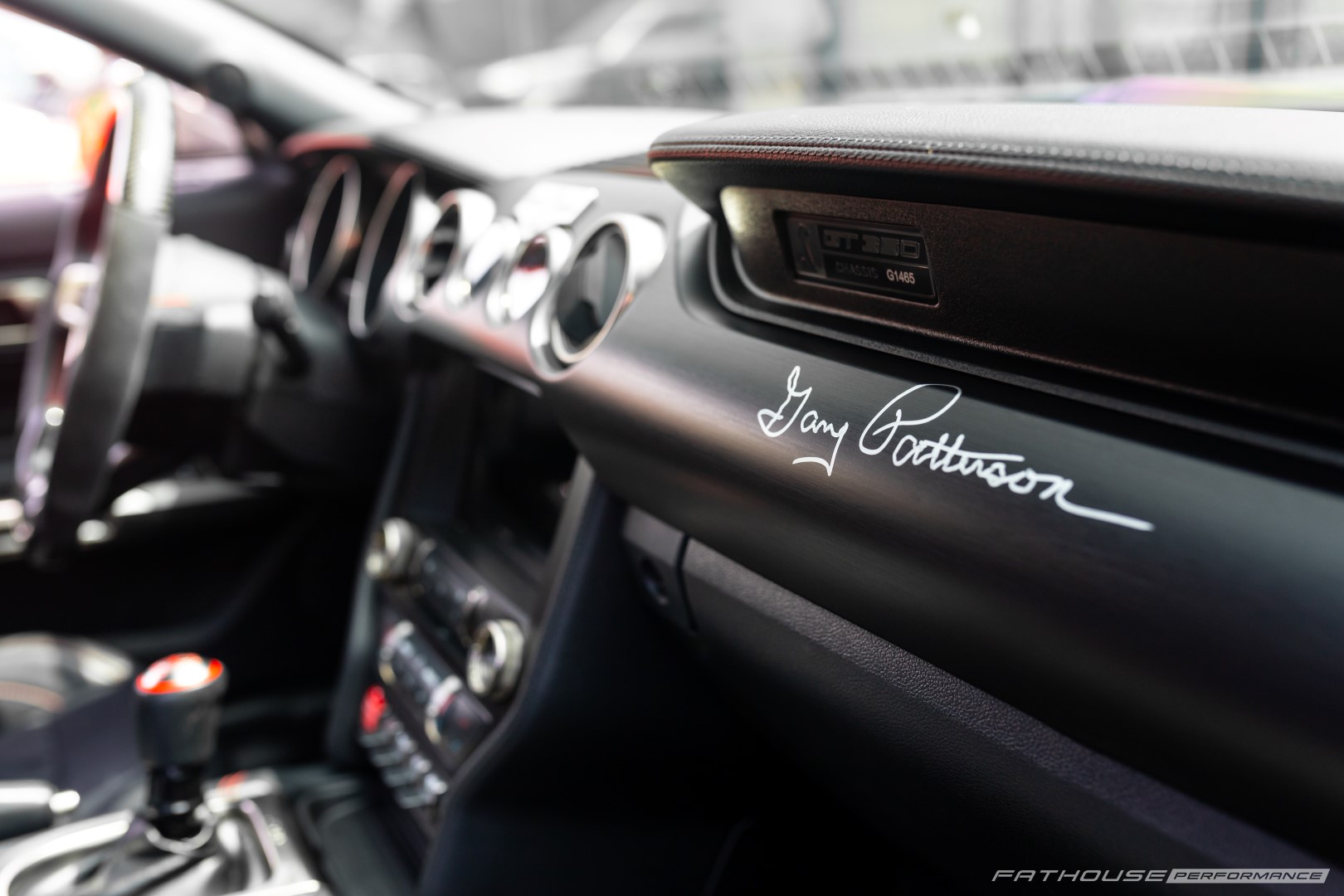

  2. (02) Interior Upgrades

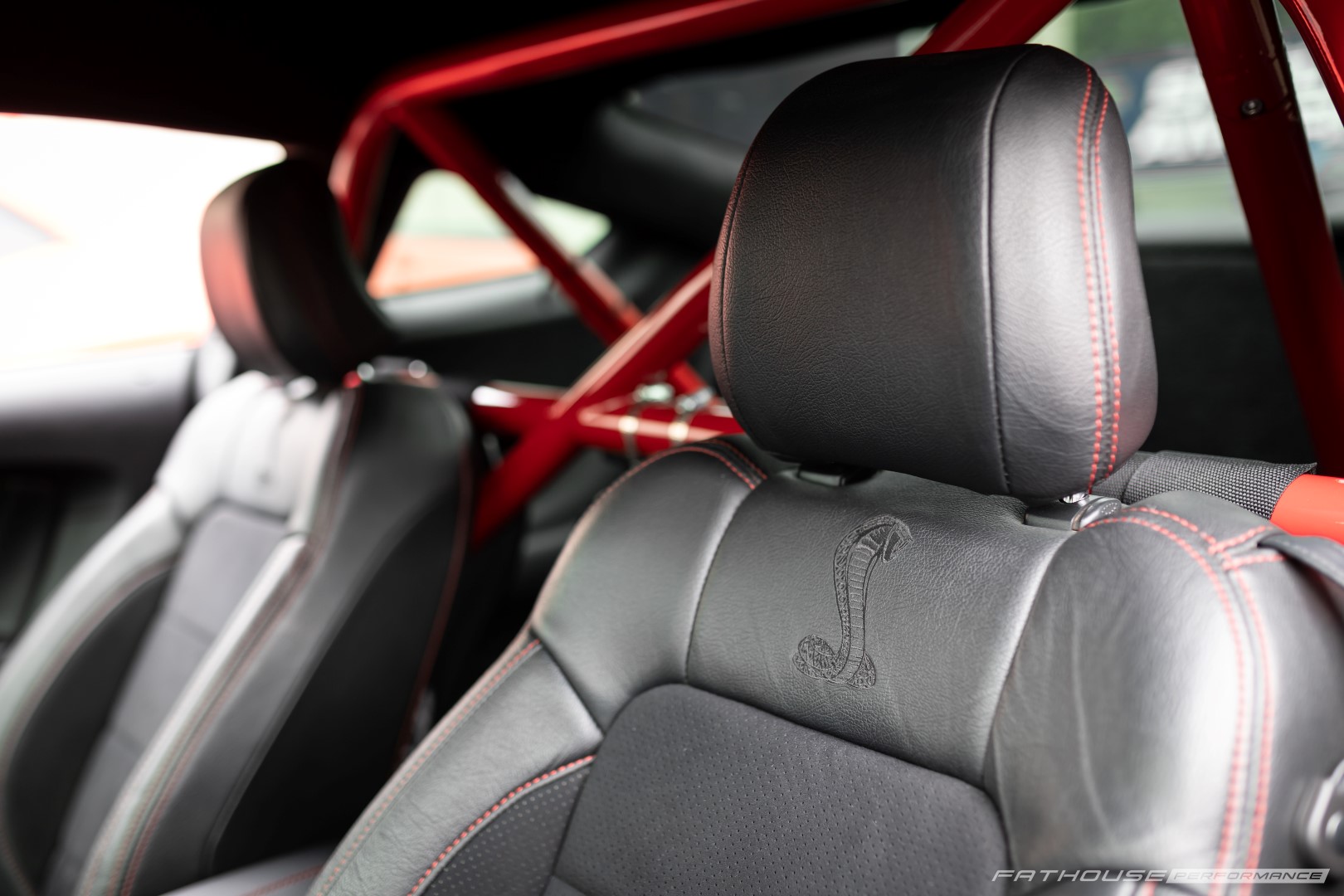

    Custom Stitched Shelby Recaro Seats

    Shelby 6 Point Racing Harnesses

    Watson Racing 4 Point Roll Bar

    Rear Seat Delete

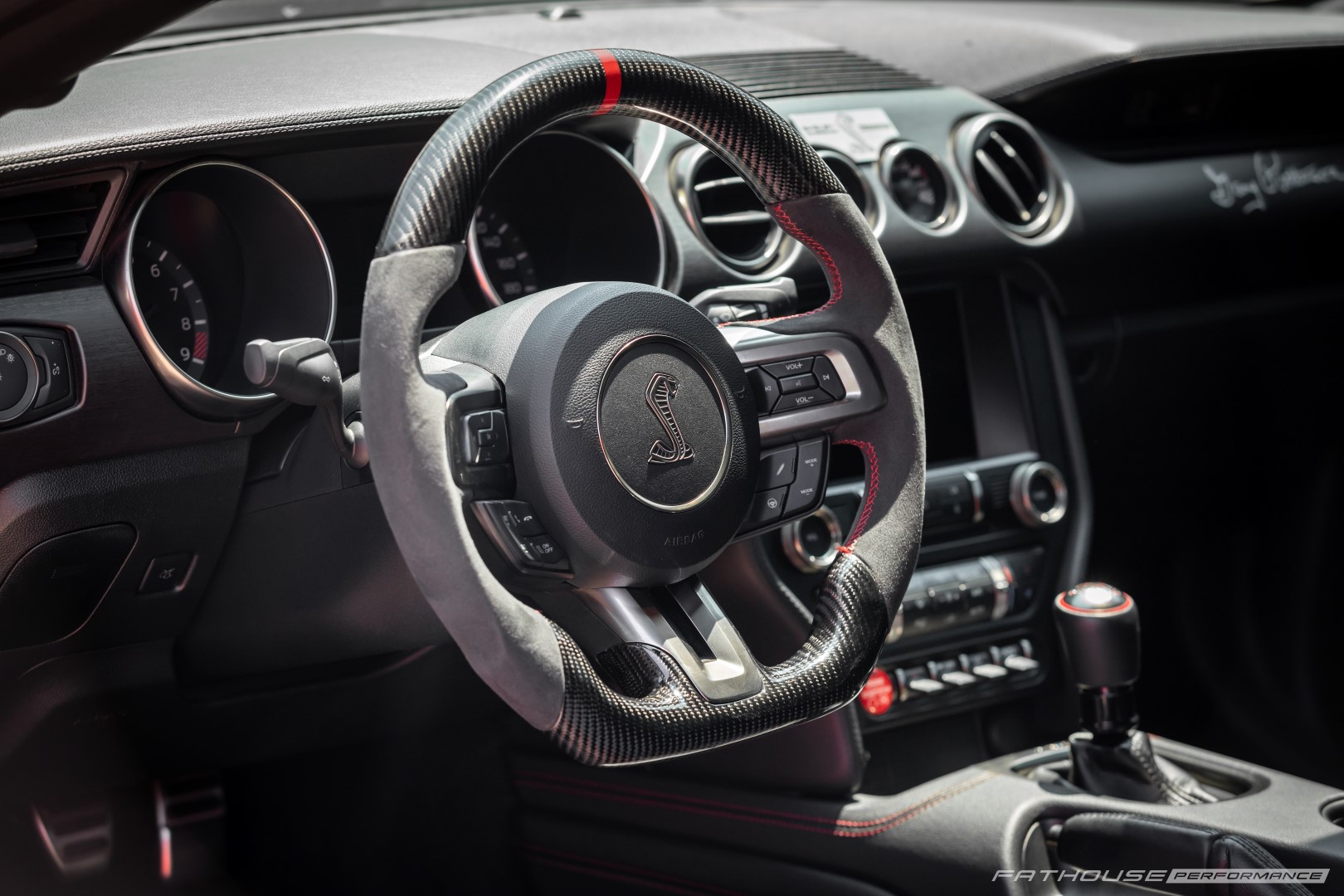

    Carbon Fiber Steering Wheel



  3. (03) Carbon Fiber Package

    Carbon Splitter
    Carbon Dive Planes
    Carbon Bumper Inserts upper/lower

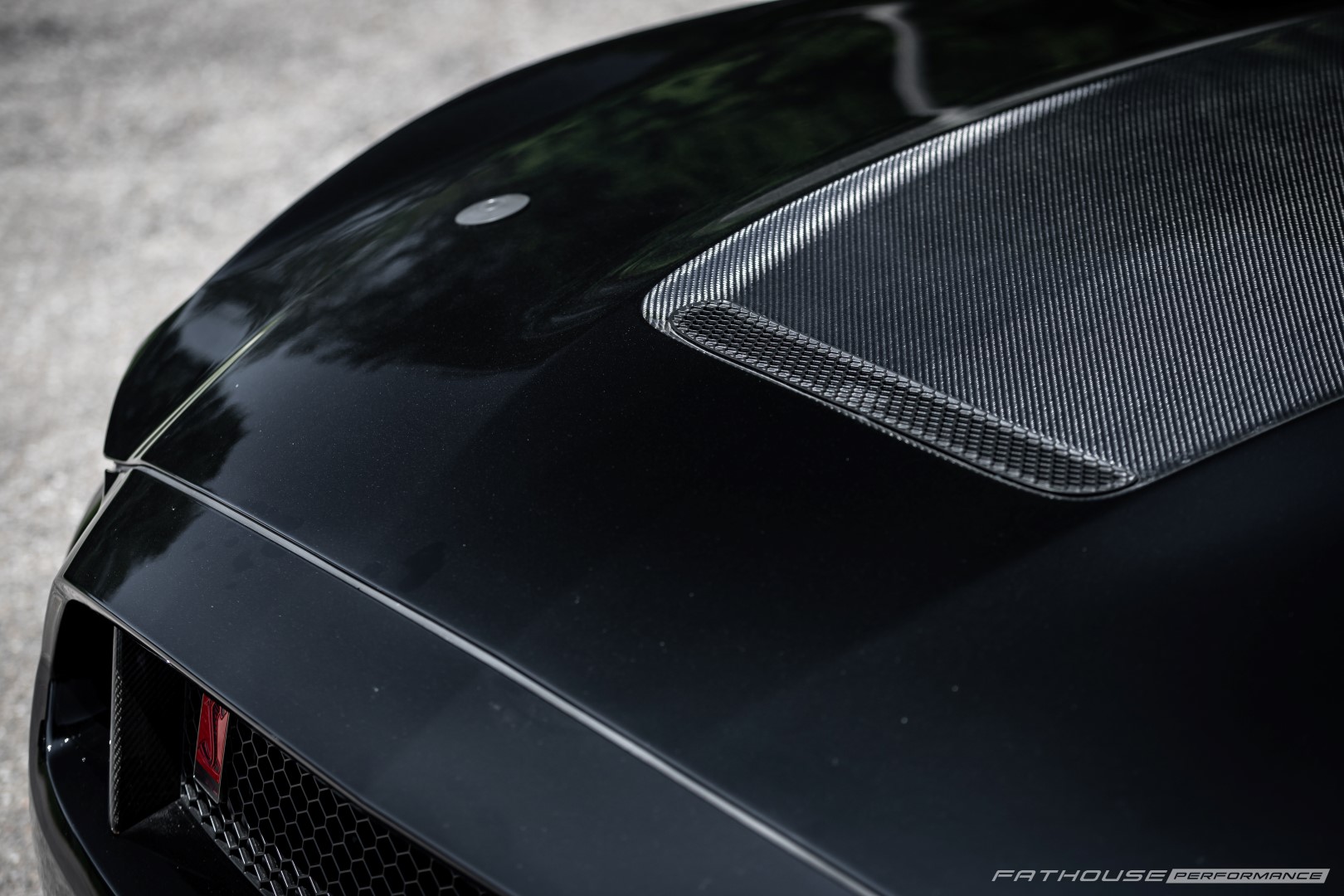

    Carbon Hood (Custom Paint)
    Carbon Spoiler (custom paint)
    Carbon Rear Diffuser

  4. (04) Shelby Forged 20x11 and 20x13 Wheels

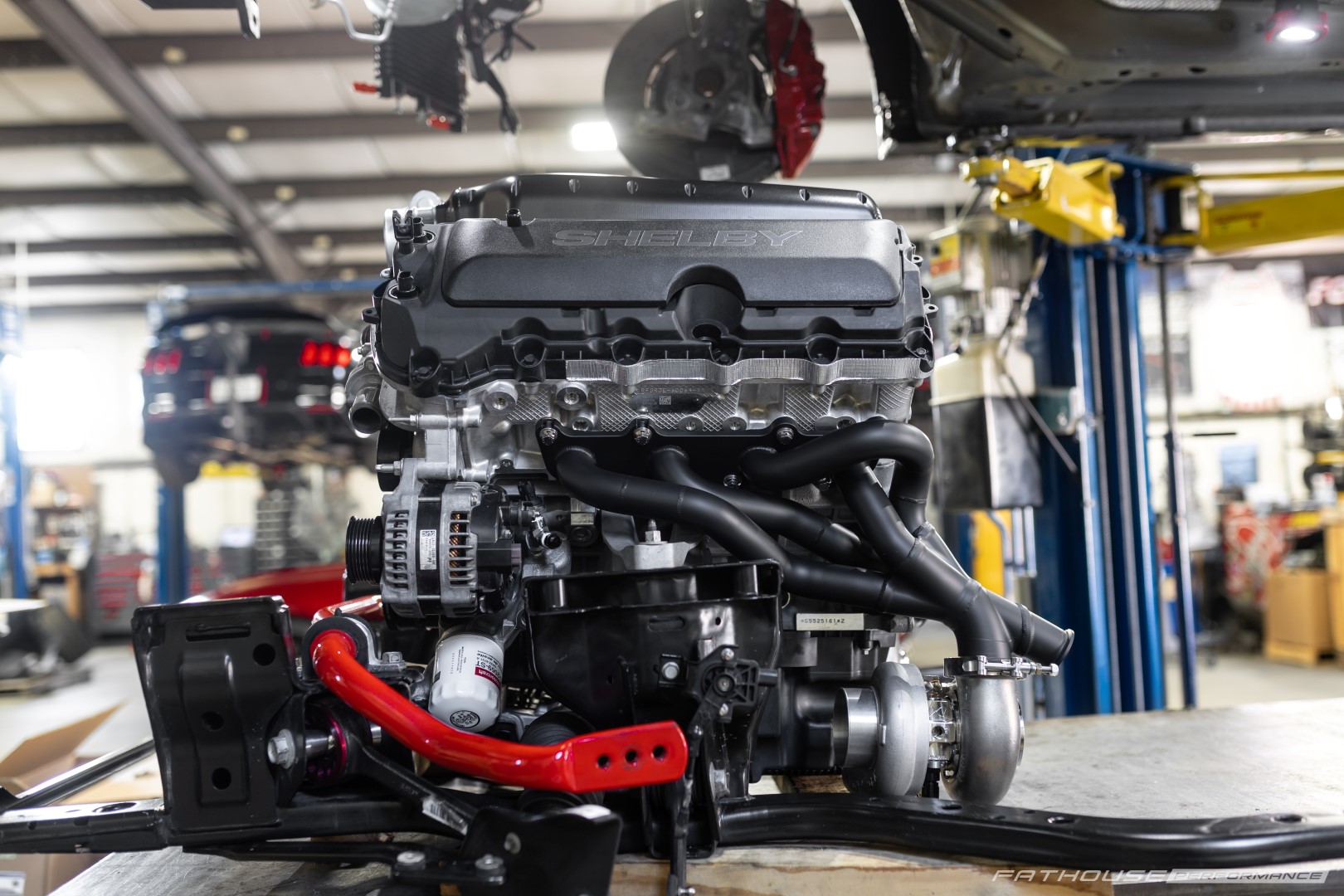

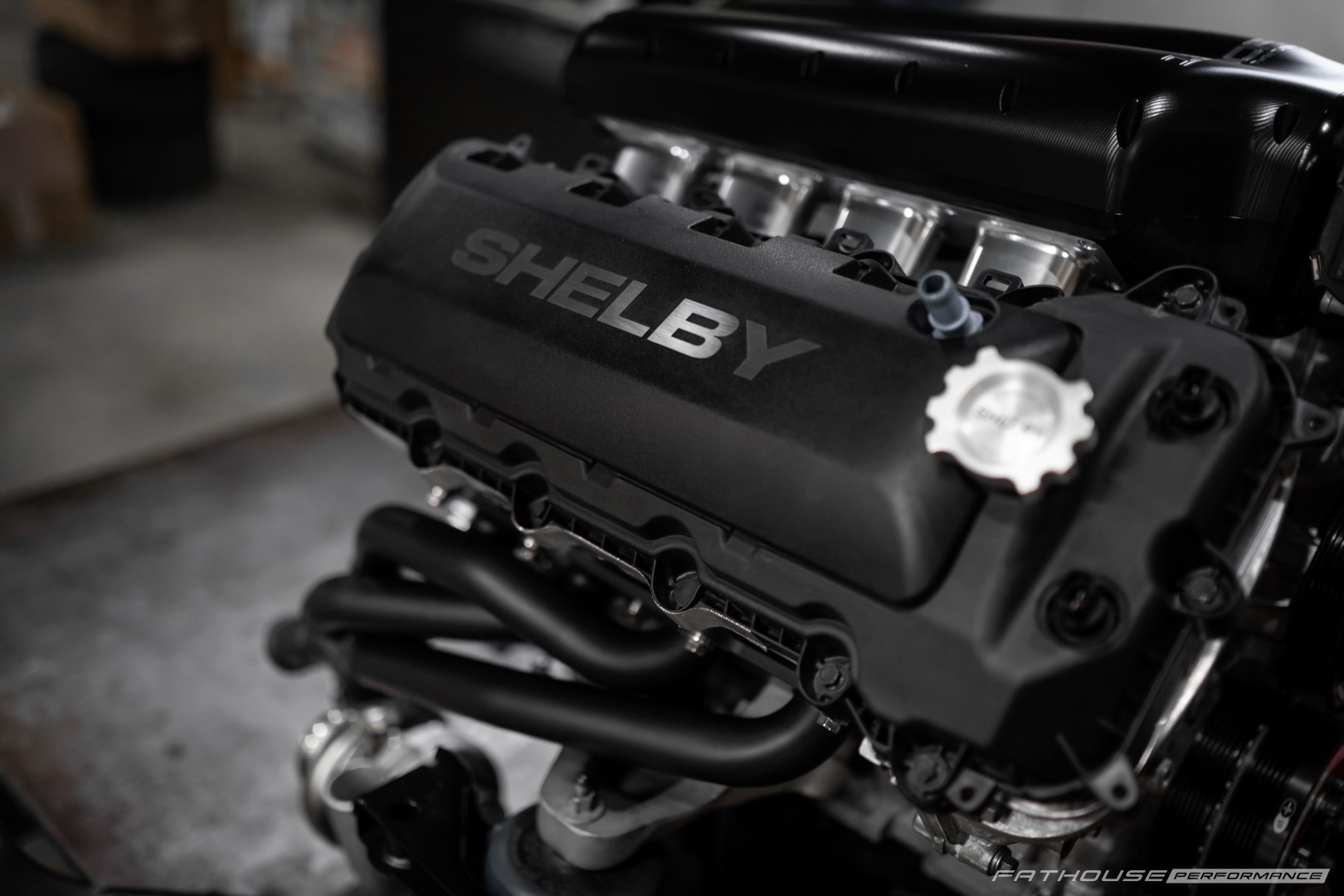

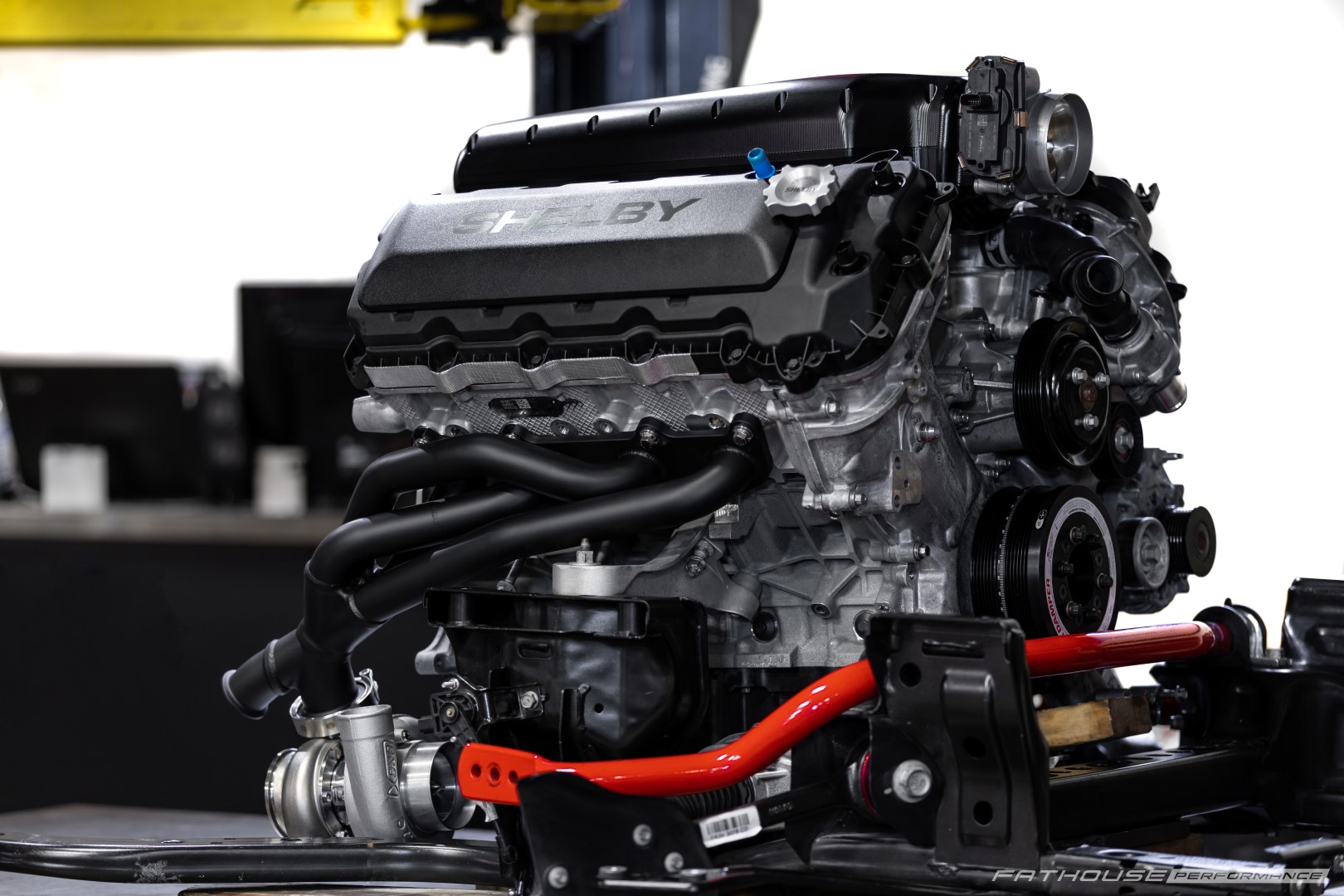

  5. (05) Forged/Sleeved Engine 5.2 Liter with Manley Rods and Pistons
    • Sleeved GT350 Block, LA Sleeves
    • Displacement – 315ci / 5.2L
    • Compression Ratio 11 : 1
    • Ford Flat Plane Crankshaft
    • Custom Manley Pistons
    • Manley I-Beam Rods
    • Total Seal Rings
    • King Main and Rod Bearings
    • TSS Oil Pump Gears and MMR Crank Gear
    • ARP Main and Head Studs
    • Ferrea Competition Plus Stainless Valves
    • PAC 1281X Valve Springs
    • IWIS Secondary Chains
  6. (06) Billet Intake Manifold
  7. (07) Fathouse 62mm Twin Turbo Package
  8. (08) Tial MVS Wastegates
  9. (09) Tial Q Blow Off Valve
  10. (10) Purpose Built Oil Scavenge System

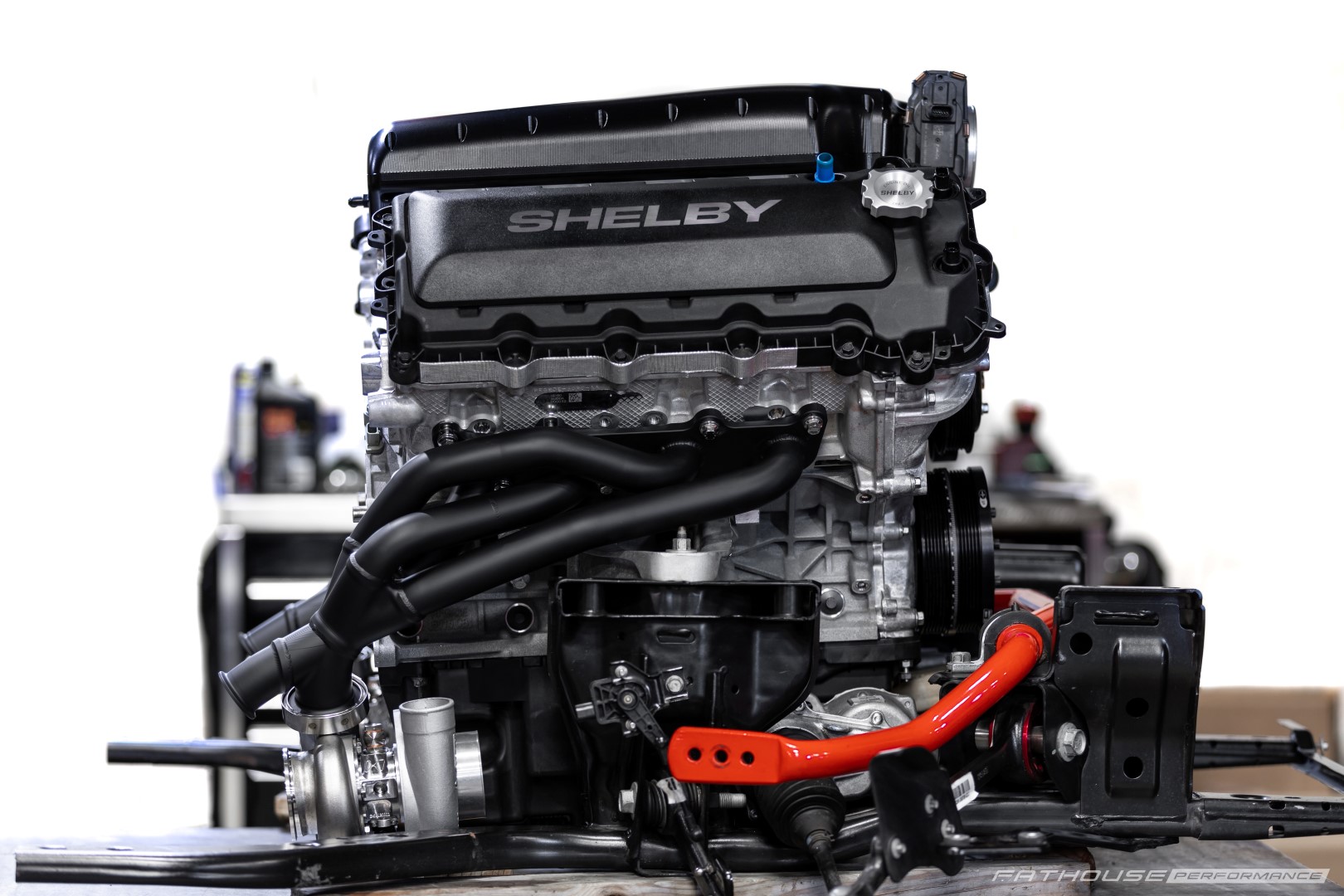

  11. (11) Custom Fabricated SS Headers

    Made In House with Billet Wastegate Merge and Collectors

    CNC Cut SS Flanges

    Heavy Wall Stainless Steel Tubing

    Precision Tig Welded and Back Purged for Added Strength

  12. (12) Titanium Manifold Blankets
  13. (13) Titanium Turbo Blankets

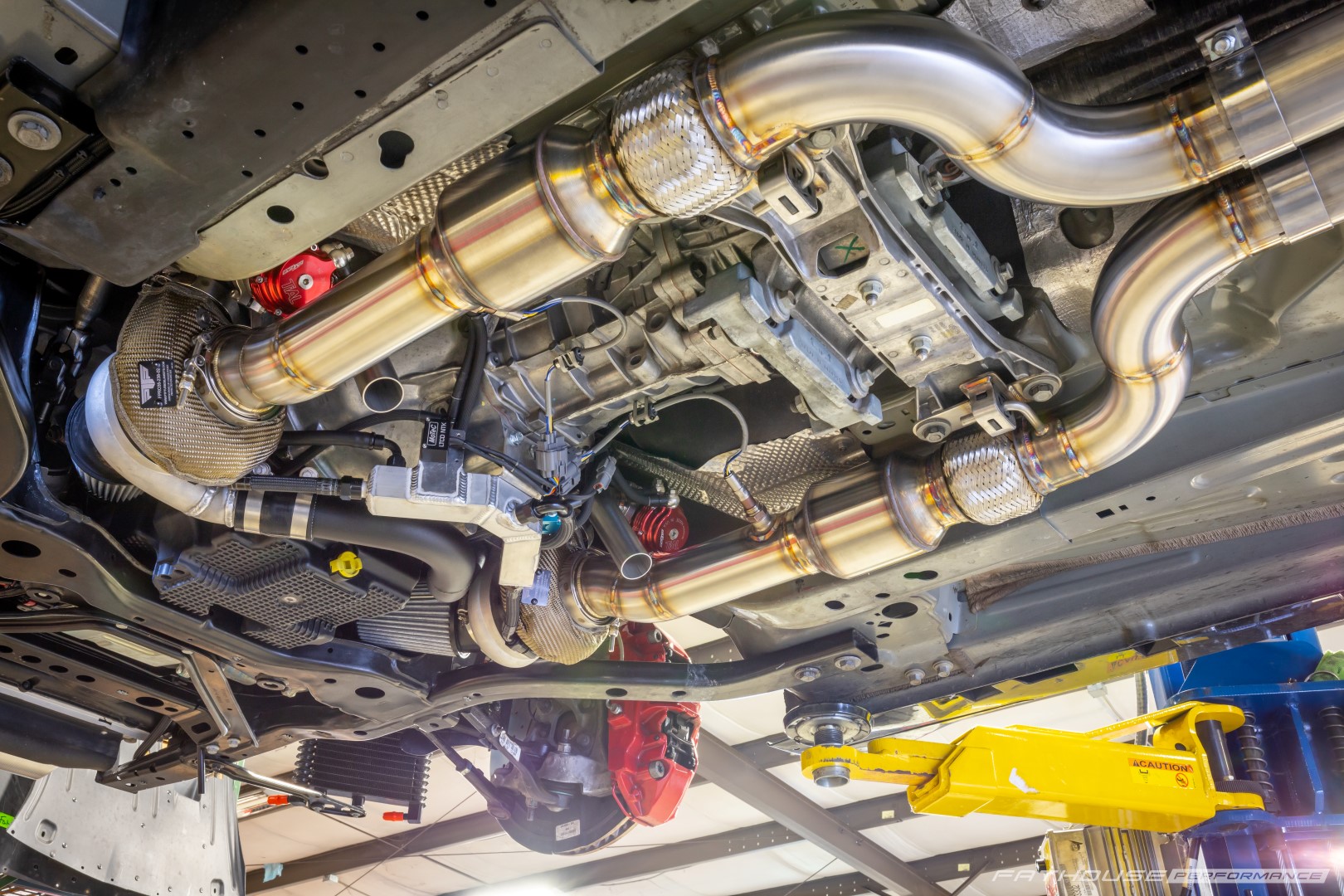

  14. (14) Custom Fabricated 3" SS Downpipes
  15. (15) Full 3" SS Active Exhaust

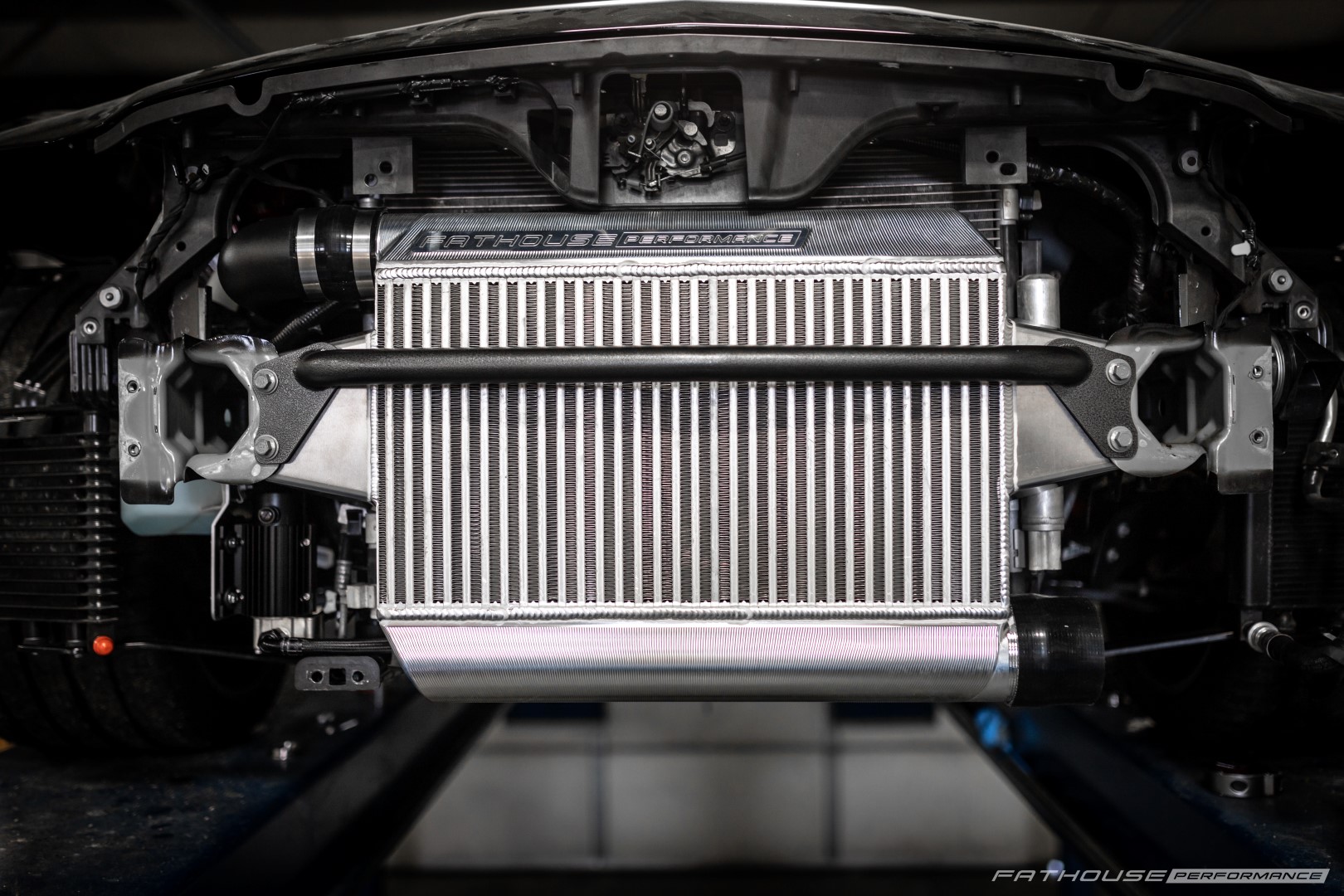

  16. (16) 4.5" Air-to-Air Intercooler with Billet Endtanks
  17. (17) Powder Coated Intercooler Piping
  18. (18) Fathouse Race Catch Can
  19. (19) BMRS Hi-Temp Polymer Hose Plumbing

    Full PTFE Hose with Hi Temp Polymer Weave.

    Lightest hose on the market

    Used in F1 Racing for a reason!

    This hose is used throughout the fuel system and the catch can vent system

  20. (20) Fathouse Coolant Tank
  21. (21) MoTeC M150 ECU
    1. Variable Traction Control
    2. True Flex Fuel
    3. Advanced Launch Control
    4. Power Adjustment via OEM Drive Modes
    5. Engine Failsafes
    6. Ghost Cam
    7. Advanced Data Logging
    8. Boost by Gear
    9. Rolling Anti-Lag (twin turbo applications)
  22. (22) Johnson Tuning Flex Fuel Dyno Calibration
  23. (23) Twin Pump Return Style Fuel System
  24. (24) ID1300x Fuel Injectors
  25. (25) Level 7 T56 Magnum Transmission
  26. (26) RPS Triple Disc Carbon Clutch
  27. (27) QA1 Carbon Fiber Driveshaft
  28. (28) Anti-Wheel Hop Suspension Package
    • Includes BMR Vertical Links TCA046
    • BK081 Bearing Kit
    • Lower Control Arm Rear Standard
    • CB005 – Cradle Bushing Lockout Kit Level 2
    • Ford Performance Parts M-5A460-M – Ford Performance Parts 2015-17 Mustang Knuckle To Toe Link Bearing Assemblies
  29. (29) Level 5 Axles
  30. (30) Toyo R888R Street Tire Package
  31. (31) 1200R Billet Weighted Shift Knob
  32. (32) 1200R Badging
  33. (33) 1200R Owner's Manual
